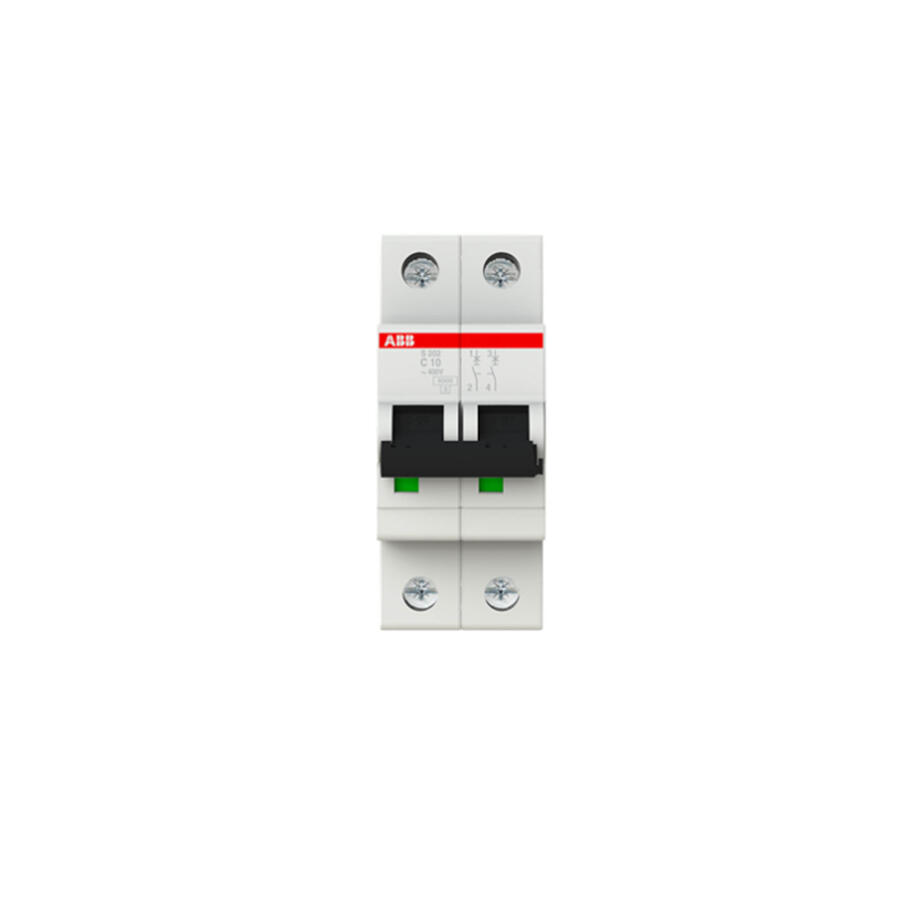

产品名称：ABB保险丝低压空气开关2CDS252001R0104微型断路器S202-C10

产品型号：2CDS252001R0104

产品类型：微型断路器

产品系列：S202-C10

System pro M compact S200 miniature circuit breakers are current limiting. They have two different tripping mechanisms, the delayed thermal tripping mechanism for overload protection and the electromechanic tripping mechanism for short circuit protection. They are available in different characteristics (B,C,D,K,Z), configurations (1P,1P+N,2P,3P,3P+N,4P), breaking capacities (up to 6 kA at 230/400 V AC) and rated currents (up to 63A). All MCBs of the product range S200 comply with IEC/EN 60898-1, IEC/EN 60947-2, UL1077 allowing the use for residential, commercial and industrial applications. Bottom-fitting auxiliary contact can be mounted on S200 to save 50% space.

Circular Design Principles Recyclability Rate: Design for Closing Resource Loops - Standard EN45555 -  90 %
Sustainable Material Content: 0 %
Offered with Extended Lifetime: Product Durability
Offered with Takeback Services: Take Back for Recycling
标准: IEC/EN 60898-1
IEC/EN 60947-2
UL 1077
脱扣特性: C
额定工作电压: acc. to IEC 60898-1 400 V AC
acc. to IEC 60947-2 440 V AC
操作电压: Maximum (Incl. Tolerance) 125 V DC
Maximum (Incl. Tolerance) 440 V AC
Minimum 12 V AC
Minimum 12 V DC
额定绝缘电压 (Ui): acc. to IEC/EN 60664-1 440 V
额定冲击耐受电压 (Uimp): 4 kV
at 2000 m 5 kV
at Sea Level 6.2 kV
介电试验电压: 50/60 Hz, 1 min: 2 kV
输入电压类型: AC/DC
额定电流 (In): 10 A
额定短路容量: (AC) 6 kA
(DC) 6 kA
(400 V AC) 6 kA
额定极限短路分断容量 (Icu): (125 V DC) 10 kA
(230 V AC) 20 kA
(400 V AC) 10 kA
(440 V AC) 10 kA
(48 V DC) 20 kA
额定限制短路电流 (Inc): (230 V) 20 kA
(400 V) 20 kA
额定服务短路分断容量 (Ics): (230 V AC) 15 kA
(400 V AC) 7.5 kA
(440 V AC) 7.5 kA
频率 (f): 50 Hz
额定频率 (f): 50 / 60 Hz
功率损耗: 4.2 W
at Rated Operating Conditions per Pole 2.1 W
进线方式: Arbitrary
触头位置指示: Red ON / Green OFF
限能等级: 3
电气耐久性: 20000 AC cycle
机械寿命: 20000 cycle
极数: 2
保护极数: 2
过电压类别: III
拧紧力矩: 2.8 N·m
安装类型: DIN-Rail
螺钉端子类型: Failsafe Bi-directional Cylinder-lift Terminal
驱动器标记: I  / O
驱动器材料: Insulation Group II, Black, Sealable
壳体材料: Insulation Group II, RAL 7035
安装到DIN导轨上: TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715
TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715
安装位置: any
推荐的螺丝刀: Pozidriv 2
Accessories Available: Yes
技术信息: S202-C10
连接容量: Busbar 10 / 10 mm2
Flexible with Ferrule 0.75 ... 25 mm2
Flexible 0.75 ... 25 mm2
Rigid 0.75 ... 35 mm2
Stranded 0.75 ... 35 mm2
安装孔尺寸: acc. to DIN 43880 1
剥线长度: 12.5 mm
端子类型: Screw Terminals
环境条件
周围环境温度: Operation -25 ... +55 °C
Storage -40 ... +70 °C
编号周围空气温度: 30 °C
防护等级: IP20
Enclosure with Cover IP40
污染等级: 3
环境条件: 28 cycles
with 55 °C / 90-96 %
and 25 °C / 95-100 %
耐振动符合IEC 60068-2-6标准: 5g, 20 cycles at 5 ... 150 ... 5 Hz with load 0.8 In
抗机械冲击符合IEC 60068-2-27标准: 25g 2 shocks 13 ms
RoHS状态: Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS信息: 2CDK403001D0607
REACH Declaration: 9AKK107492A1906
SCIP: e6800e55-46b1-49a3-881b-0f66d0e903ad Germany (DE)
UL/CSA适用的技术参数
高工作电压UL/CSA: 110 V DC
480Y/277 V AC
中断额定值符合UL1077标准: (277 V AC) 6 kA
(480Y / 277 V AC) 6 kA
(240 V) 10 kA
连接容量UL/CSA: Busbar 18-8 AWG
Conductor 18-4 AWG
拧紧力矩UL/CSA: 18 in·lb
尺寸
宽度(模块化垫片数): 2
产品净宽: 35 mm
产品净高: 88 mm
产品净深: 69 mm
产品净重: 0.25 kg
极点净重: 0.125 kg
内深 (t2): 69 mm
尺寸图: 2CDC022007F0010
订货信息
最小起订量: 1 piece
1级包装单元: carton 5 piece
1级包装 总重: 1.3 kg
E-Number (Finland): 3210510
E-Number (Sweden): 2100556
认证及声明（文件编码）
认证机构: EN
IEC
UL
符合性声明 - CE: 2CDK403001D0607
Declaration of Conformity - UKCA: 9AKK108467A5053
I2t Characteristic: 9AKK107992A5102
