General

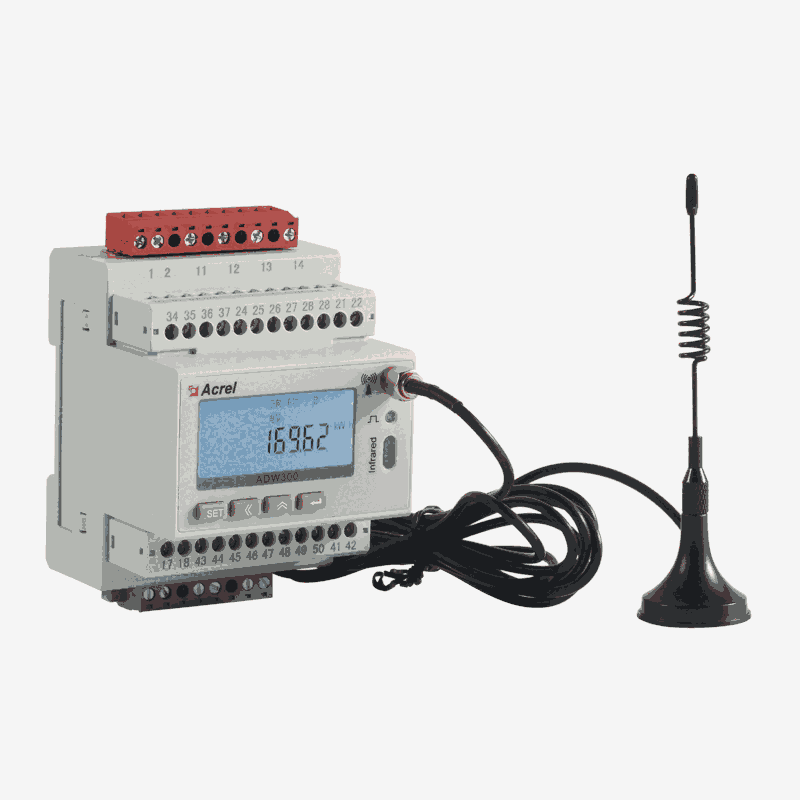

ADW300 wireless meter is mainly used to measure three-phase active power in low-voltage network. It has the functions of RS485 communication and 470MHZ wireless communication. It is convenient for users to monitor, collect and manage electricity. It can be flexibly installed in the distribution box to realize the measurement, statistics and analysis of individual electric energy in different regions and loads.
Function
Accuracy
Active power: Class 0.5S Pulse Output
Constant: 6400imp/kWh；
Consumption
<10VA(Single phase)
Dimension (L*W*H)
Panel size (L×W)：82*87.8*71.5 mm
Wireless
Transmission on 470MHz and maximum distance
in open space is 1km; 2G; NB
Frequency: Range: 50~60Hz
Starting current: 2‰ln
Reactive power: Class 2

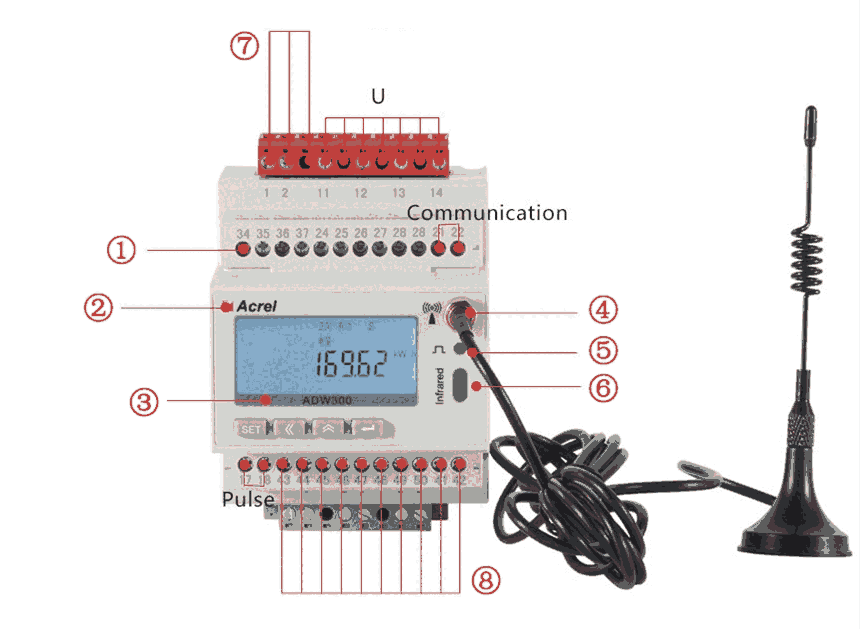

Front Panel
① DO / DI
② Brand
③ Model Number
④ Antenna Terminal
⑤ Pulse Output Light
⑥ Infrared Status
⑦ Auxiliary Power Supply
⑧ Temperature / Leakage Current

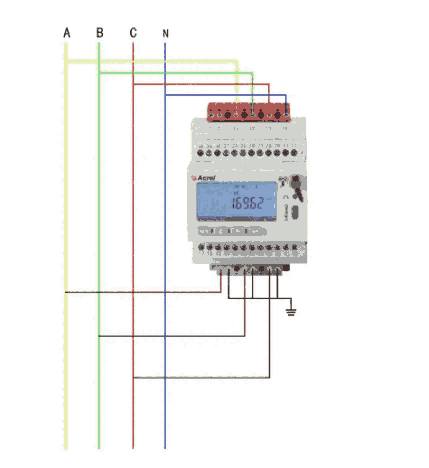

Wiring
3 Phase 3 Wire
3 Phase 4 Wire

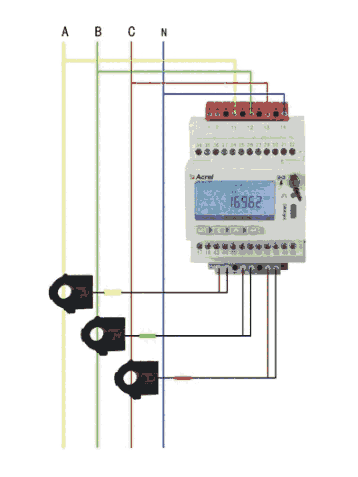

3 Phase 4 Wire with External CT

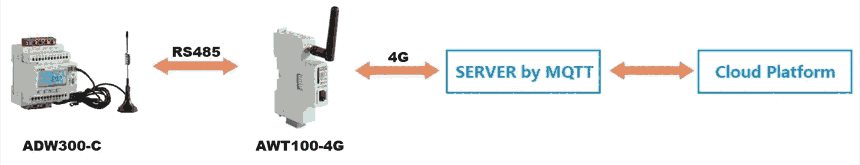

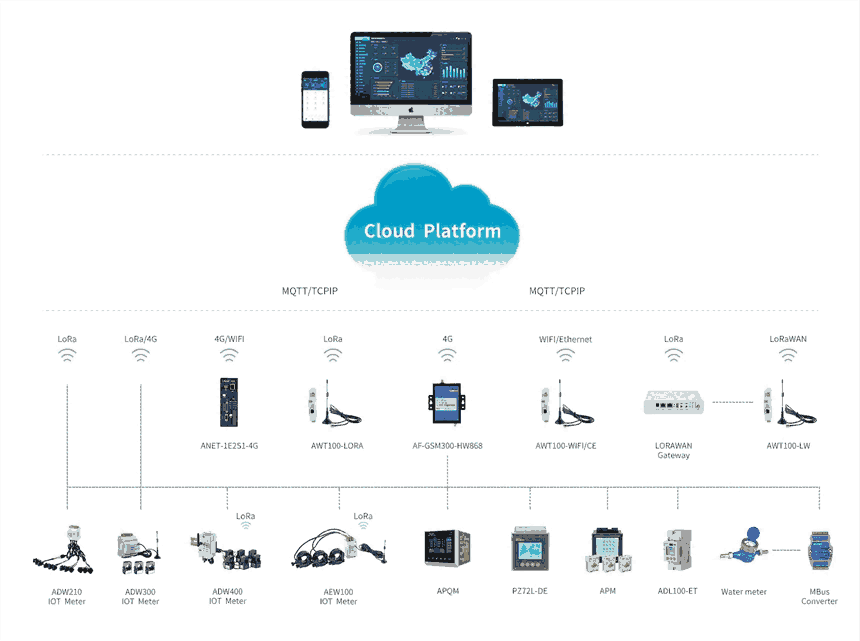

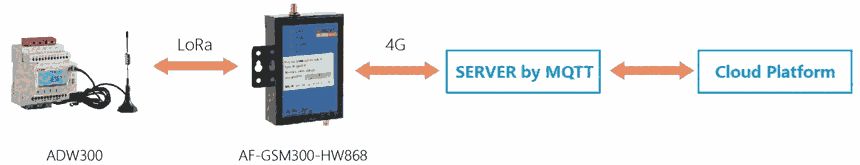

Network
