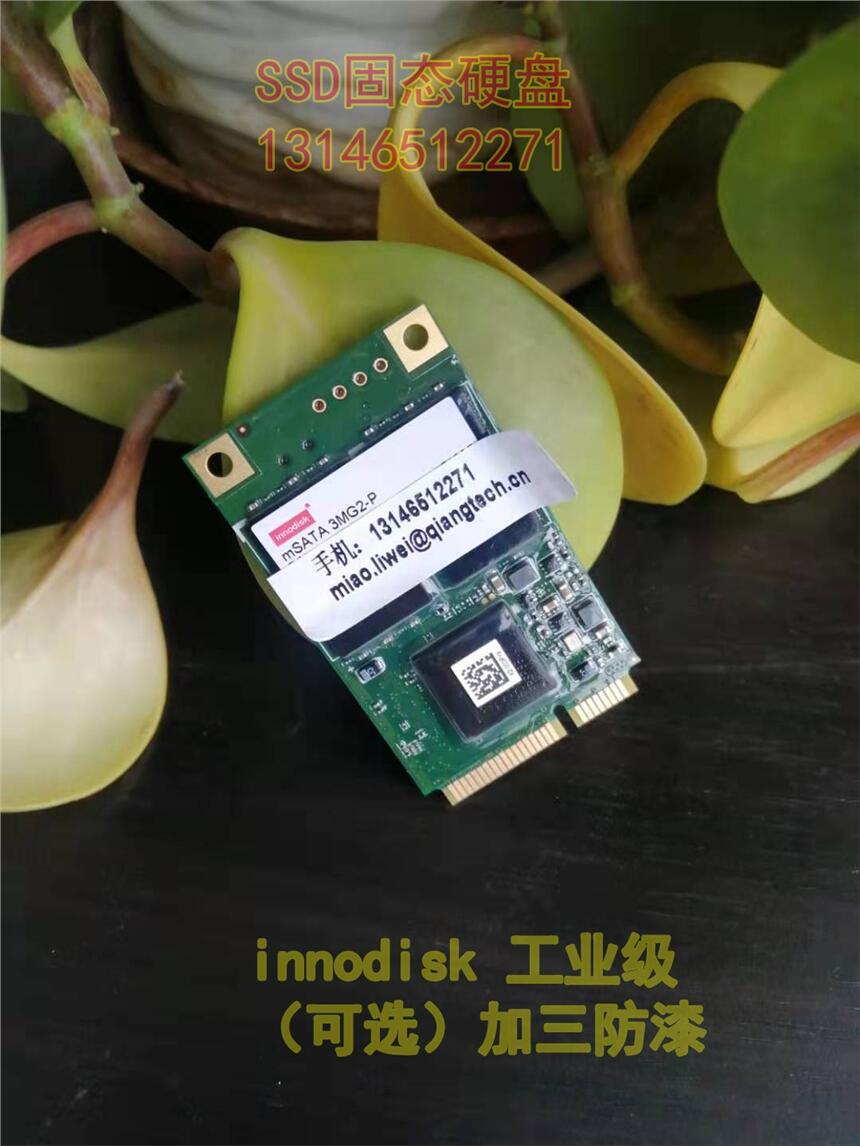

固态硬盘 64G 3MG2-P DGMSR-64GD81BC1QC innodisk
mSATA 3MG2-P
mSATA为一高效能、符合JEDEC MO-300?规格的产品,其外型设计为mPCIe尺寸,同时也可兼容于SATA接口。体积小巧,适用于各种空间受限的系统。
Overview:
? ? ? ?Innodisk mSATA 3MG2-P is SATA III 6Gb/s flash based disk, which delivers excellent performance, especially in random data transfer rate, and which offers reliability making it the ideal solution for a variety of applications, including embedded system, industrial computing, and enterprise field. 3MG2-P mSATA not only performs unmatched performance, but also designed with Innodisk owned technical knowhow such as iData Guard to ensure the data integrity and highest levels of reliability. Featuring L2 architecture, the life span of the SSD is maximized by an evolved wear leveling algorithm.
?
概述:
? ? innodisk msata 3mg2-p?是一种基于?sata iii?的6gb / s?闪存盘,具有优异的性能,特别是在随机数据传输速率方面,并且提供了可靠性,使其成为各种应用的理想解决方案,包括嵌入式系统、工业计算和企业领域。?3mg2-p msata?设计了?innodisk?拥有的技术诀窍,如?idata?保护,以确保数据完整性和可靠性水平。?以?l2架构为特色,通过改进的磨损均衡算法。
Model Name | mSATA 3MG2-P |
Interface | SATA III 6.0 Gb/s |
Flash Type | MLC |
Type | Standard |
Capacity | 8GB~1TB |
Max. Channels | 4 |
Sequential R/W (MB/sec, max.) | 520/355 |
Max. Power Consumption | 3.4 W (3.3 V x 1.03 A) |
Thermal Sensor | Y |
H/W Write Protect | Optional |
S.M.A.R.T. | Y |
ATA Security | Y |
DEVSLP Mode | Y (min. power consumption 3mW) |
Slumber Mode | Y (min. power consumption 30mW) |
Dimension (WxLxH/mm) | 29.85 x 50.8 x 3.6 |
Vibration | 20G@7~2000Hz |
Shock | 1500G@0.5ms |
MTBF | >3 million hours |
Storage Temperature | -55°C ~ +95°C |
Operation Temperature |
Standard Grade: 0°C ~ +70°C; Industrial Grade: -40°C ~ +85°C |
Operation Temp. | 8GB | 16GB | 32GB | 64GB | 128GB | 256GB | 512GB | 1TB |
Standard Grade (0°C ~ +70°C) |
DGMSR-08GD81BC1SC | DGMSR-16GD81BC1&C | DGMSR-32GD81BC1%C | DGMSR-64GD81BC1QC | DGMSR-A28D81BC1QC | DGMSR-B56D81BC1QC | DGMSR-C12D81BCAQC | DGMSR-01TD81BCAQC |
Industrial Grade (-40°C ~ +85°C) |
DGMSR-08GD81BW1SC | DGMSR-16GD81BC1&C | DGMSR-32GD81BW1%C | DGMSR-64GD81BW1QC | DGMSR-A28D81BW1QC | DGMSR-B56D81BW1QC | DGMSR-C12D81BWBQC | DGMSR-01TD81BWAQC |
Please refer to TPS for details
