- SATA III solution for industrial field
- Exclusive L3?architecture
- DRAM-less, 100% data integrity
- Excellent random performance
- Designed with hardware LDPC ECC engine
- Built-in Pin 8 power supply

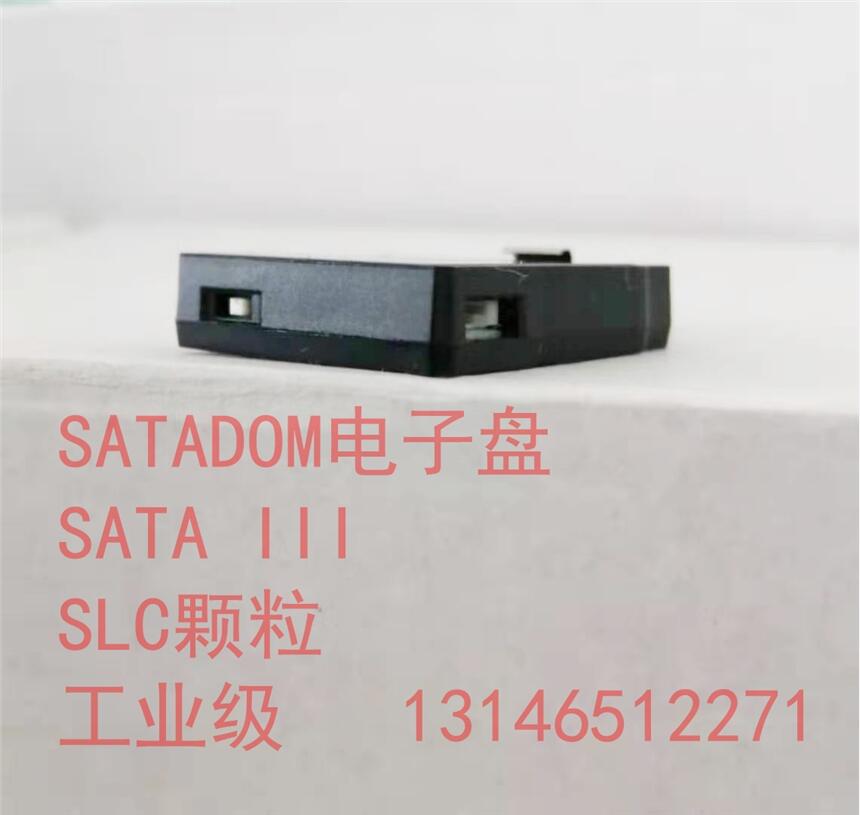

全新sata固态硬盘 3me4 宜鼎innodisk电子盘 DESSL-32GM41BC1SCA
SATADOM?
SATADOM?是宜鼎研发的尺寸规格，适用于1U服务器，搭载优化固件以及无线电源，成为各种嵌入式与服务器应用上，快速开机装置选择。
产品特色
Overview:
Innodisk SATADOM-SL 3ME4 is characterized by L3 architecture with the latest SATA III (6.0GHz) Marvell NAND controller. Innodisk’s exclusive L3 architecture is L2?architecture multiplied LDPC (Low Density Parity Check). L2?(Long Life) architecture is a 4K mapping algorithm that reduces WAF and features a real-time wear leveling algorithm to provide high performance and prolong lifespan with exceptional reliability.
Innodisk SATADOM-SL 3ME4 is designed for industrial field, and supports several standard features, including TRIM, NCQ, and S.M.A.R.T. In addition, Innodisk’s exclusive industrial-oriented firmware provides a flexible customization service, making it perfect for a variety of industrial applications.
The innovative Pin 8 uses the SATA connector itself as a power supply to drive the device without external cables. It could be connected directly to the SATA on-board socket on customer’s system without additional power cable. Besides, the booting time for operation and the power consumption is less than hard disk drive (HDD), and can work under harsh environment compile with ATA protocol, no additional drives are required, and the SSD can be configured as a boot device or data storage device.
SATADOM?是宜鼎研发的尺寸规格，适用于1U服务器，搭载优化固件以及无线电源，成为各种嵌入式与服务器应用上，快速开机装置选择。
Innodisk SATADOM-SL 3ME4 is characterized by L3 architecture with the latest SATA III (6.0GHz) Marvell NAND controller. Innodisk’s exclusive L3 architecture is L2?architecture multiplied LDPC (Low Density Parity Check). L2?(Long Life) architecture is a 4K mapping algorithm that reduces WAF and features a real-time wear leveling algorithm to provide high performance and prolong lifespan with exceptional reliability.
Innodisk SATADOM-SL 3ME4 is designed for industrial field, and supports several standard features, including TRIM, NCQ, and S.M.A.R.T. In addition, Innodisk’s exclusive industrial-oriented firmware provides a flexible customization service, making it perfect for a variety of industrial applications.
The innovative Pin 8 uses the SATA connector itself as a power supply to drive the device without external cables. It could be connected directly to the SATA on-board socket on customer’s system without additional power cable. Besides, the booting time for operation and the power consumption is less than hard disk drive (HDD), and can work under harsh environment compile with ATA protocol, no additional drives are required, and the SSD can be configured as a boot device or data storage device.
?
?
概述:
innodisk satadom-sl 3me4采用拥有属性 l 3架构，配备最新版本的 sata iii (6.0 ghz) marvell nand 控制器。 Innodisk 的独占 l3结构是 l2结构乘以 ldpc (低密度奇偶校验)。 L2(长寿命)体系结构是一个4k 映射算法，减少了 waf，并具有实时的磨损均衡算法，以提供高性能和延长寿命的特殊可靠性。 Innodisk satadom-sl 3me4是专为工业领域设计的，支持多种标准功能，包括 trim、 ncq 和 s.m.a.r.t。此外，innodisk 的面向工业的独家固件提供了灵活的定制服务，使其成为各种工业应用的完美选择。 创新的引脚8使用 sata 连接器本身作为电源驱动设备没有外部电缆。 它可以直接连接到用户系统上的 sata 板上插座，而不需要额外的电力电缆。 此外，启动时间和功耗都低于硬盘驱动器(hdd) ，可以在使用 ata 协议编译的恶劣环境下工作，不需要额外的驱动器，可以将 ssd 配置为启动设备或数据存储设备。
规格：
| Model Name | SATADOM-SL 3ME4 |
| Interface | SATA III 6.0 Gb/s |
| Flash Type | MLC |
| Type | Vertical |
| Capacity | 8GB~128GB |
| Max. Channels | 1 |
| Sequential R/W (MB/sec, max.) | 530/120 |
| Max. Power Consumption | 1.02W (5V x 204mA ) |
| Thermal Sensor | Y |
| H/W Write Protect | N |
| Pin 7 Power | Y |
| Pin 8 Power | Y |
| S.M.A.R.T. | Y |
| ATA Security | Y |
| Dimension (WxLxH/mm) | 33.06 x 29.6 x 10.5 |
| Vibration | 20G@7~2000Hz |
| Shock | 1500G@0.5ms |
| MTBF | >3 million hours |
| Storage Temperature | -55°C ~ +95°C |
| Operation Temperature |
Standard Grade: 0°C ~ +70°C; Industrial Grade: -40°C ~ +85°C |
产品料号：
| Operation Temp. | 8GB | 16GB | 32GB | 64GB | 128GB |
| Standard Grade (0°C ~ +70°C) | DESSL-08GM41BC1SC* | DESSL-16GM41BC1SC* | DESSL-32GM41BC1SC* | DESSL-64GM41BCADC* | DESSL-A28M41BCADC* |
| Industrial Grade (-40°C ~ +85°C) | DESSL-08GM41BW1SC* | DESSL-16GM41BW1SC* | DESSL-32GM41BW1SC* | DESSL-64GM41BWADC* | DESSL-A28M41BWADC* |
*=A-> Pin 8+ power cable
*=B-> Pin 8+ Pin 7
